    Stainless Steel Expanded Metal Mesh For Security Walls And Doors

    Stainless Steel Expanded Metal Security Walls And Doors

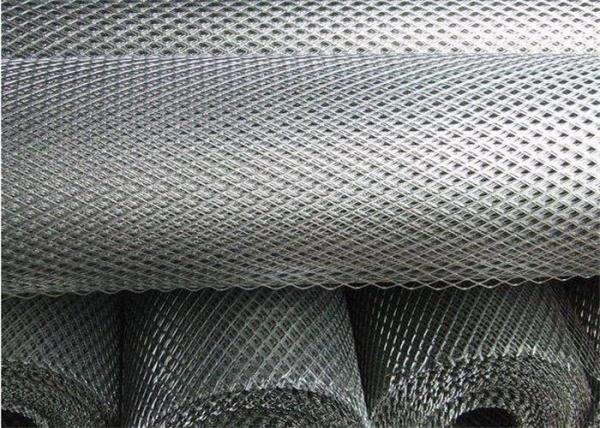

    Expanded metal mesh is available in two main types: standard expanded steel mesh (raised/regular) and flattened expanded metal mesh.
    Raised expanded metal mesh features diamond-shaped openings with a slightly raised surface. It provides structural strength, airflow, and visibility.
    Flattened expanded metal mesh is created by passing the standard expanded sheet through a cold roll reducing mill. It has diamond-shaped openings with a smooth and flat surface, offering a sleek appearance.
    The choice of mesh type depends on specific requirements like strength, visibility, airflow, and design preferences.


    Advantages of Stainless Steel Expanded Metal Security Walls And Doors


    Compared with the welded and woven wire mesh, the structure of expanded metal mesh is complete and stable, so it is easier to install and transport. Besides, unlike fiberglass cloth, expanded mesh has absolute flame retardancy, durability, resistance to harsh environment and water resistance.

    Moreover, the expanded mesh is made by cutting and stretching, so there is no waste in its production process, which can save the product cost. Its price is also very competitive.


    Application of Stainless Steel Expanded Metal Security Walls And Doors


    Metal grates
    Security fencing, walls, and doors
    Racks and shelving
    Strainers
    Architectural infill panels
    Satellite and radar antennas
    HVAC systems
    Partitions and equipment enclosures
    Speaker grilles
    Wind and machine guards
    EMI/RFI shielding
    Fluid and air filters


    Feature of Stainless Steel Expanded Metal Security Walls And Doors


    Simply fixed to the wall of water can plastering
    Provide a smooth rounded edge for the corner
    Easy to adjust to a variety of angles

    One piece and single unit construction
    Less weight and more economic than regular metal sheet
    Extensive range of materials to suit any application
    It is rigid for protective uses, while providing decorative effect
    High quality for durable use
    The most economical option among all metal materials
    Easy to install


    Specification of Stainless Steel Expanded Metal Security Walls And Doors
    Pattern
    Designation
    LWD
    inches
    (mm)
    SWD
    inches
    (mm)
    Orig. Mat'l
    Thickness
    inches
    (mm)
    Strand
    Width
    inches
    (mm)
    Openings
    per sq. in.
    500.405 - .506"
    (10.25 - 12.75)
    .143 - .279"
    (3.6 - 7.1)
    .003 - .04"
    (.075 - 1)
    .007- .07"
    (.175 - 1.775)
    15-22
    275.215 - .289"
    (5.4 - 7.4)
    .107 - .200"
    (2.7 - 5.1)
    .003 - .035"
    (.075 - .9)
    .005- .055"
    (.125 - 1.4)
    33-77
    190.180 - .190"
    (4.5 -4.8)
    .056 -.143"
    (1.4 - 3.6)
    .002 - .030"
    (.05 - .75)
    .005- .045"
    (.125 - 1.1)
    79-166
    125.112 - .160"
    (3.0 - 4.06)
    .055 -.115"
    (1.4 - 2.92)
    .002 - .026"
    (.05 - .7)
    .004- .04"
    (.1 - 1.10)
    114-253
    100.093 - .112"
    (2.4 - 2.8)
    .038 -.091"
    (.97 - 2.3)
    .002 - .025"
    (.05 - .61)
    .005- .026"
    (.125 - .66)
    253-353
    077.075 - .080"
    (1.91 - 2.03)
    .032 -.053"
    (0.82 - 1.35)
    .001 - .018"
    (.025 - .46)
    .004 - .020"
    (.1 - .51)
    493-780
    050.050 - 06"
    (1.27 - 1.5)
    .021 -.041"
    (0.53 - 1.04)
    .001 - .015"
    (.025 - .381)
    .004 - .015"
    (.1 - .381)
    809-1814
    031.03 - .04"
    (0.78 - 1.02)
    .021 -.029"
    (0.53 - 0.74)
    .001 - .005"
    (.025 - .127)
    .004 - .012"
    (.1 - .31)
    1789-2942
    020.020"
    (0.51)
    .011 -.014"
    (0.28 - 0.36)
    .001 - .002"
    (.025 - .050)
    .004 - .006"
    (.1 - .152)
    8500-11000
