Economical Retaining Wall Gabion Basket , Wire Mesh Gabion Basket

Anping Win Win Wire Mesh Manufacturing Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Economical Retaining Wall Gabion Basket , Wire Mesh Gabion Basket from wholesalers

    Buy cheap Economical Retaining Wall Gabion Basket , Wire Mesh Gabion Basket from wholesalers
    • Buy cheap Economical Retaining Wall Gabion Basket , Wire Mesh Gabion Basket from wholesalers
    • Buy cheap Economical Retaining Wall Gabion Basket , Wire Mesh Gabion Basket from wholesalers
    • Buy cheap Economical Retaining Wall Gabion Basket , Wire Mesh Gabion Basket from wholesalers
    • Buy cheap Economical Retaining Wall Gabion Basket , Wire Mesh Gabion Basket from wholesalers

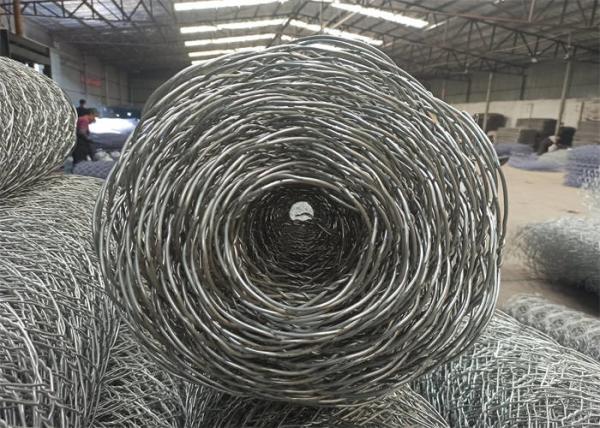

    Economical Retaining Wall Gabion Basket , Wire Mesh Gabion Basket

    Ask Lasest Price
    Brand Name : Giant Shuttle
    Model Number : WW-0002
    Certification : ISO9001-2015
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 2000SETS PER WEEK
    Delivery Time : 10-15 work days
    • Product Details
    • Company Profile

    Economical Retaining Wall Gabion Basket , Wire Mesh Gabion Basket

    Economical Retaining Wall Gabion Basket , Wire Mesh Gabion Basket

    The double twisted hexagonal wire mesh shall have deformability sufficient to permit minimum of mesh elongation equivalent to 10% of the unstretched length of the mesh test section without reducing the gauge or the tensile strength of the individual wire strands to values less than those for similar wire, one gauge smaller in diameter.

    The double twisted hexagonal wire mesh is to be fabricated in such a manner as to be non-raveling. This is defined as the ability to resist pulling apart at any of the twists or connections forming the mesh when a single wire strand in a section of mesh is cut or broken.

    Standard Specification of Economical Retaining Wall Gabion Basket , Wire Mesh Gabion Basket

    Mesh Opening (MM)Steel Wire Diameter (MM)(PVC Wire)/ Inside diameter/Outer diameter(MM)
    60X802.0-2.82.0/3.0-2.8/3.8
    80X1002.2-3.22.2/3.2-3.0/4.0
    80X1202.2-3.22.2/3.2-3.0/4.0
    100X1202.4-3.52.4/3.4-3.2/4.2
    100X1502.4-3.52.4/3.4-3.2/4.2
    120X1502.7-4.02.7/3.7-3.5/4.5

    Advantages of Economical Retaining Wall Gabion Basket , Wire Mesh Gabion Basket


    Flexible and simple structure and can filled with most of the in-situ materials.

    High permeability help vegetation grow.

    Cost-effective and has a long service life.

    High tensile strength and toughness.

    Simple installation.

    Corrosion and abrasion resistance.

    Durable and stable structure.


    Applications of Economical Retaining Wall Gabion Basket , Wire Mesh Gabion Basket


    Mass gravity retaining structures

    Mechanically stabilized earth (MSE) walls

    Vegetated slope reinforcement

    Slope stabilization

    Slope reinforcement

    Channel lining and channel relocation

    Slope and bank protection

    Shore and stream bank protection

    Weirs, groins, and jetties

    Drop structures

    Culvert outlet scour pads and headwalls

    Bridge abutments

    Erosion control

    Cover or lids of woven gabions

    Rockfall barriers

    Road mesh

    river bank

    Sloe protection

    Erosion control

    Channel lining

    Retaining wall

    Vegetation greening system
