    Economic Retaining Wall Gabion Baskets River Mattress PVC / PE Coating

    Ask Lasest Price
    Brand Name : Giant Shuttle
    Model Number : WW-0002
    Certification : ISO9001-2015
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 2000SETS PER WEEK
    Delivery Time : 10-15 work days
    • Product Details
    • Company Profile

    Economic Retaining Wall Gabion Baskets River Mattress PVC / PE Coating

    Economic Metal Gabion Basket River Mattress PVC Or PE Coating

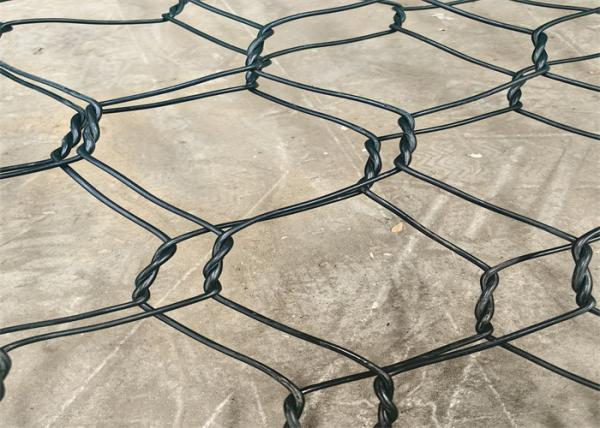

    Gabion Wire Mesh is a kind of mesh made of high-quality steel wire which is coated with PVC or galvanized. It is a kind of box-shaped stone cage with a rectangular or square cross section and is filled with stones. Gabion Wire Mesh can be used as a retaining wall, foundation pit support, slope protection, and other civil engineering structures. It has good corrosion resistance and can be used in seawater environment. It is also widely used in flood control and dam projects. The box size of Gabion Wire Mesh is 1m*1m*2m. The wire diameter of the mesh ranges from 2.0mm-4.0mm and its PVC coating thickness ranges from 0.2-0.6mm. It is available in various colors such as green, blue, grey, etc. The packaging of Gabion Wire Mesh includes waterproof paper, pallet, etc.

    Gabion Mesh, Gabion Caged Wire Mesh, and Gabion Basket Mesh are popular choices for construction projects due to their high strength, corrosion resistance, and flexibility. They are widely used in retaining walls, river banks, erosion protection, and other civil engineering structures. They are also an ideal choice for landscaping projects. Gabion Wire Mesh is the perfect solution for projects requiring strength, stability, and durability.


    Standard Specification of Economic Metal Gabion Basket River Mattress PVC Or PE Coating

    Mesh Opening (MM)Steel Wire Diameter (MM)(PVC Wire)/ Inside diameter/Outer diameter(MM)
    60X802.0-2.82.0/3.0-2.8/3.8
    80X1002.2-3.22.2/3.2-3.0/4.0
    80X1202.2-3.22.2/3.2-3.0/4.0
    100X1202.4-3.52.4/3.4-3.2/4.2
    100X1502.4-3.52.4/3.4-3.2/4.2
    120X1502.7-4.02.7/3.7-3.5/4.5

    Advantages of Economic Metal Gabion Basket River Mattress PVC Or PE Coating

    Flexible and simple structure and can filled with most of the in-situ materials.

    High permeability help vegetation grow.

    Cost-effective and has a long service life.

    High tensile strength and toughness.

    Simple installation.

    Corrosion and abrasion resistance.

    Durable and stable structure.


    Applications of Economic Metal Gabion Basket River Mattress PVC Or PE Coating


    Mass gravity retaining structures

    Mechanically stabilized earth (MSE) walls

    Vegetated slope reinforcement

    Slope stabilization

    Slope reinforcement

    Channel lining and channel relocation

    Slope and bank protection

    Shore and stream bank protection

    Weirs, groins, and jetties

    Drop structures

    Culvert outlet scour pads and headwalls

    Bridge abutments

    Erosion control

    Cover or lids of woven gabions

    Rockfall barriers

    Road mesh

    river bank

    Sloe protection

    Erosion control

    Channel lining

    Retaining wall

    Vegetation greening system
