Razor wire and concertina wire are our feature products for security protection. Our products include razor concertina wire, flat wrap coils, welded, spiral razor wire and razor barriers security fencing. They are made out of galvanized wire, PVC coated wire, stainless steel mesh materials. Our anti-piracy razor wire blade includes fish-hook blade, long blade, tear blade, medium blade and short blade.

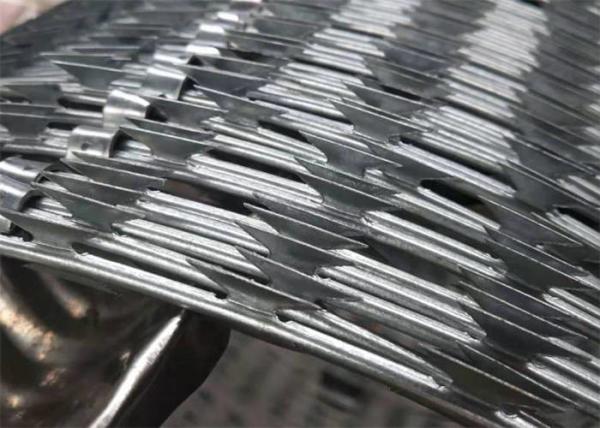

Manufacture process: First, galvanized steel coils and steel wire are prepared as the material. Then, cutting galvanized steel coils to barbed tape, after cutting, razor barbed tape tightly crimped around the steel wire forming razor wire. The following two images are the barbed tape and steel wire state of before crimped and after crimping.
Packing: simple packing and carton packing.
Simple packing: inside is water proof paper and outside is woven bags and then compression. It is mainly for BTO-10, BTO-12, BTO-22, BTO-30 and CBT-25.
Carton packing: razor mesh coils are loading into hard cartoon boxes, it is mainly application to CBT-65, CBT-60.

Features of Anti Corrosion Concertina Razor Wire Coil Hot Dipped Galvanized Concertina Barbed Wire

Anticorrosion
Antiaging
Sunscreen
Weather ability
Cost saving
To some extend play a role in protection and intimidation.

Applications of Anti Corrosion Concertina Razor Wire Coil Hot Dipped Galvanized Concertina Barbed Wire

Airport.
Military site.
Prison.
Factory.
High class residences.
Secure hospitals.
Schools.
Parks.
Utilities.
Refineries.
Nuclear.
Energy.

Specification of Anti Corrosion Concertina Razor Wire Coil Hot Dipped Galvanized Concertina Barbed Wire

Table 2: Minimum coating weight on zinc and aluminum alloy coated barbed wire

Reference number	Blade style	Thickness (mm)	Wire diameter (mm)	Blade length (mm)	Blade width (mm)	Blade spacing (mm)
BTO-12		0.5 ± 0.05	2.5 ± 0.1	12 ± 1	15 ± 1	26 ± 1
BTO-15		0.5 ± 0.05	2.5 ± 0.1	15 ± 1	15 ± 1	33 ± 1
BTO-22		0.5 ± 0.05	2.5 ± 0.1	22 ± 1	15 ± 1	34 ± 1
BTO-30		0.5 ± 0.05	2.5 ± 0.1	30 ± 1	18 ± 1	45 ± 1
CBT-25		0.5 ± 0.05	2.5 ± 0.1	25 ± 1	16 ± 1	40 ± 1
CBT-60		0.6 ± 0.05	2.5 ± 0.1	60 ± 2	32 ± 1	100 ± 2
CBT-65		0.6 ± 0.05	2.5 ± 0.1	65 ± 2	21 ± 1	100 ± 2
CBT refers to Concertina Barbed Tape. BTO refers to Barbed Tape Obstacle.

From Concept to Design,Manufaturing,and installation -We are Your Professional Manufacturer.

Anping Win Win Wire Mesh Manufacturing Co., Ltd is a premier manufacturer and supplier of wire mesh products, The company has sufficient inventory, support customization and complete varieties and specifications. We dedicate to strict quality control and thoughtful customer service. We have established a long-term and stable cooperative relationship with customers at home and abroad.

Anping Win Win Wire Mesh Manufacturing Co., Ltd devote into industrial building material, and industrial filtration wire mesh and screen. For the industrial building material, we have metal binding wire for the reinforcing steel bar construction in different forms, which meet the market needs of different countries. With a wide range of steel and wire mesh products, we aim to offer our clients one-stop solution. We offer the following products: welded mesh, woven mesh, hexagonal wire netting, gabion, chain link fence,wire mesh fences, reinforcement mesh, welded wire mesh, welded wire panels, expanded metal mesh, stainless steel wire mesh, special material wire mesh and so on.Mainmarket are USA, Canada, France, Brazil and Korea.

Strict Quality Control

Quality policy: Seeking innovation and pursuing excellence.
Quality objectives: Deliver zero-defect products to customers on time
Inspection process: carried out by independent departments, first piece inspection, production process inspection, finished product inspection.

Quality Service And Vision

With rich manufacturing experience and full control over raw materials, production and finished product inspection, we can provide good quality, competitively priced wire mesh fence products and reliable services. We hope to establish a long-term business relationship with you and sincerely hope that our fence production will bring you more happiness and life security.

Our Promise

Our purpose is best Quality, on time delivery & Reasonable prices and we would like to find the same partner and making strong links business as good opportunity for both of us about good & long time cooperating in Wire Mesh Business.
