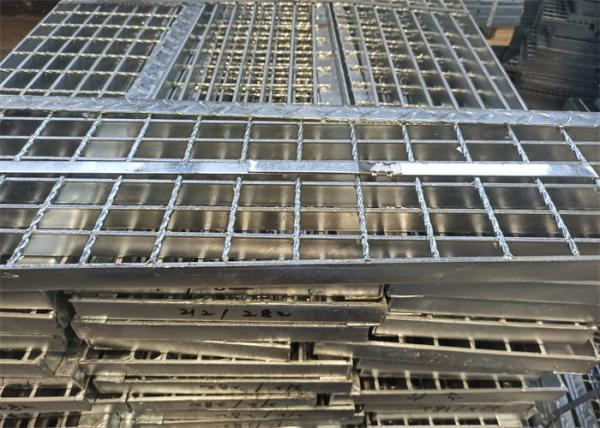

    Galvanized Steel Bar Grating Lightweight I Bar Grating High Strength

    Galvanized Steel I Bar Steel Grating –Light Weight But High Strength


    I shape bearing bars supplies lighter weight when the strength is equal to rectangular bar steel grating. I bar steel grating is suitable for both commercial and industrial applications.

    Special I shape bearing bars.
    Lighter weight and high strength.
    Carbon steel, galvanized steel or stainless steel material options.
    Ideal for both commercial and industrial applications.
    Wide range of configurations for choice.
    Special discount for large orders.
    Project reference can be supplied for your bid.


    Features of Galvanized Steel I Bar Steel Grating –Light Weight But High Strength


    Light weight. high bearing capability and high strength.
    Non-silp. anti-corrosion.
    Not easy to deform
    Beautiful appearance.
    Easy to install and remove.
    Extended the lifespan.


    Applications of Galvanized Steel I Bar Steel Grating –Light Weight But High Strength


    Large-scale shopping malls.
    Construction industry.
    Factories. subway stations.
    Offshore drilling platforms.
    Ships.
    Terminals.
    Other industrial and civil construction.


    Specifications of Galvanized Steel I Bar Steel Grating –Light Weight But High Strength


    TypePlain / Smooth, Serrated /teeth, I bar, serrated-I bar
    Load /Bearing bar size20×3,25×3,25×5,30×3,30×4,30×5,32×3,32×5……120×10mm,etc.
    Load /Bearing bar pitch12.5,15,20,25,30,35,40,50mm
    Transverse /Cross bar pitch38,50,80,100mm
    MaterialLow carbon steel, stainless steel, aluminum alloy
    Surface treatmentUntreated, hot galvanized, painting,electro galvanized

    Grating Standard

    China: YB/T 4001.1-2007

    USA: ANSI/NAAMM(MBG531-88)

    UK: BS 4592-1987

    Australia: AS 1657-1985


    Material standard

    China: GB 700-88

    UK: BS 4360:1990

    USA: ASTM A36/A36M-96

    AUSTRALIA: AS 3679


    HDG standard

    CHINA: GB/T13912-2002

    UK: BS729

    USA: ASTM A123/A123M-97a

    AUSTRALIA: AS 1650
