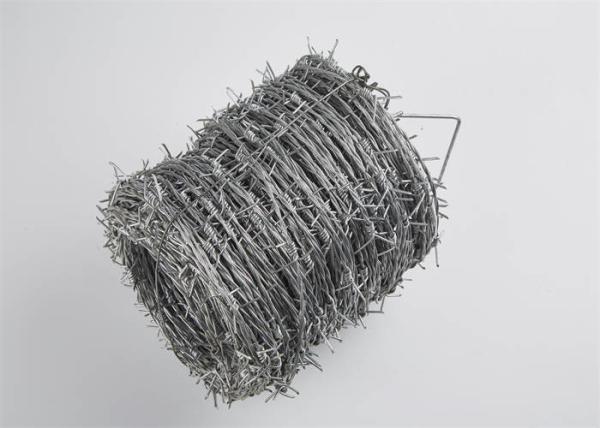

Hot Dipped Galvanized Barbed Wire Reverse Twist 20cm Aperture
Double twist barbed wire is a kind of modern security fencing materials fabricated with high-tensile wire. Double Twist Barbed Wire can be installed to achieve the result of frightening and stopping to the aggressive perimeter intruders, with piecing and cutting razor blades mounted at the top of the wall, also the special designs making climbing and touching extremely difficult. The wire and strip are galvanized to prevent corrosion.
Currently, double twist barbed wire been widely used by many countries in military field, prisons, detention houses, government buildings and other national security facilities. Recently years, barbed tape has apparently become the most popular high-class fencing wire for not only military and national security applications, but also for cottage and society fence, and other private buildings.
Features of Hot Dipped Galvanized Barbed Wire Reverse Twist 20cm Aperture
High quality can supply stability and rigidity for the barbed wire.
High strength of barbed wire can secure cattle, horse and other
livestock in the area.
Sharp edge frightens intruders and thieves.
Single or double strand for different budget and security grade.
Galvanized and other anti-corrosive material for excellent
corrosion and rust resistance and durable life.
PVC coated surface can supply various colors for your choice.
Completed accessories for easy and convenient installation and
uninstallation.
Various packages for safe and convenient loading, transporting and
using.
Painted on barbs for visible and warning view. The color can be
green, red or any other you want.
Applications of Hot Dipped Galvanized Barbed Wire Reverse Twist
20cm Aperture
Used in farms and ranch for rearing livestock. It is an alternative
to the woven wire field fence and electric fence. Different spec
and structure can keep your cattle, horse and other livestock in
the area and prevent them from walking or climbing out of the pens.
Barbed wire used for security application.
Barbed wires can be used individually to form the barbed wire fence
on the highway, railway and other dangerous places to protect site
and people' safe.
It can also be attached onto various wire mesh fences to improve
the security factor of the site, such as prison, factory, military
sites, airport and other places.
Specification of Hot Dipped Galvanized Barbed Wire Reverse Twist 20cm Aperture
Item | Steel wire gauge | Nominal diameter | Minimum weight of coating oz/ft2 (g/m2) | ||
---|---|---|---|---|---|
in. | mm | Class 1 | Class 3 | ||
ZCBW-01 | 12-1/2 | 0.099 | 2.51 | 0.28 (85) | 0.80 (245) |
ZCBW-02 | 13 | 0.092 | 2.34 | 0.28 (85) | 0.75 (230) |
ZCBW-03 | 13-1/2 | 0.086 | 2.18 | 0.25 (75) | 0.70 (215) |
ZCBW-04 | 13/3/4 | 0.083 | 2.11 | n/a | 0.70 (215) |
ZCBW-05 | 14 | 0.080 | 2.03 | 0.25 (75) | 0.70 (215) |
ZCBW-06 | 15/1/2 | 0.067 | 1.70 | n/a | 0.65 (200) |
ZCBW-07 | 16-1/2 | 0.058 | 1.47 | n/a | 0.60 (200) |
Item | Steel wire gauge | Nominal wire diameter | Minimum weight of coating Oz/ft2) (g/m2) | |||
---|---|---|---|---|---|---|
in. | mm | Class 1 | Class 3 | Class 60 | ||
ZACBW-01 | 12-1/2 | 0.099 | 2.51 | 0.28 (85) | 0.80 (245) | 0.60 (183) |
ZACBW-02 | 13 | 0.092 | 2.34 | 0.28 (85) | 0.75 (230). | 0.60 (183) |
ZACBW-03 | 13-1/2 | 0.086 | 2.18 | 0.25 (75) | 0.70 (215) | 0.60 (183) |
ZACBW-04 | 13-3/4 | 0.083 | 2.11 | 0.25 (75) | 0.70 (215) | 0.60 (183) |
ZACBW-05 | 14 | 0.080 | 2.03 | 0.25 (75) | 0.70 (215) | 0.60 (183) |
ZACBW-06 | 15-1/2 | 0.067 | 1.70 | 0.20 (61) | 0.65 (198) | n/a |
ZACBW-07 | 16-1/2 | 0.058 | 1.47 | 0.20 (61) | 0.60 (183) | n/a |
Item | Model (line wire × barb wire) | Approximate length per kilogram (m) | |||
---|---|---|---|---|---|
Barb spacing 3" | Barb spacing 4" | Barb spacing 5" | Barb spacing 6" | ||
BWCS-01 | 12 × 12 | 6.0617 | 6.7590 | 7.2700 | 7.6376 |
BWCS-02 | 12 × 14 | 7.3335 | 7.9051 | 8.3015 | 8.5741 |
BWCS-03 | 12-1/2 × 12-1/2 | 6.9223 | 7.7190 | 8.3022 | 8.7221 |
BWCS-04 | 12-1/2 × 14 | 8.1096 | 8.814 | 9.2242 | 9.5620 |
BWCS-05 | 13 × 13 | 7.9808 | 8.899 | 9.5721 | 10.0553 |
BWCS-06 | 13 × 14 | 8.8448 | 9.6899 | 10.2923 | 10.7146 |
BWCS-07 | 13-1/2 × 14 | 9.6079 | 10.6134 | 11.4775 | 11.8553 |
BWCS-08 | 14 × 14 | 10.4569 | 11.6590 | 12.5423 | 13.1752 |
BWCS-08 | 14-1/2 × 14-1/2 | 11.9875 | 13.3671 | 14.3781 | 15.1034 |
BWCS-10 | 15 × 15 | 13.8927 | 15.4945 | 16.6666 | 17.5070 |
BWCS-11 | 15-1/2 × 15-1/2 | 15.3491 | 17.1144 | 18.4060 | 19.3386 |
![]() |
