Giant Shuttle Fence Razor Blade Wire , Anti Aging Welded Razor Wire

Anping Win Win Wire Mesh Manufacturing Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Giant Shuttle Fence Razor Blade Wire , Anti Aging Welded Razor Wire from wholesalers

    Buy cheap Giant Shuttle Fence Razor Blade Wire , Anti Aging Welded Razor Wire from wholesalers
    • Buy cheap Giant Shuttle Fence Razor Blade Wire , Anti Aging Welded Razor Wire from wholesalers
    • Buy cheap Giant Shuttle Fence Razor Blade Wire , Anti Aging Welded Razor Wire from wholesalers
    • Buy cheap Giant Shuttle Fence Razor Blade Wire , Anti Aging Welded Razor Wire from wholesalers
    • Buy cheap Giant Shuttle Fence Razor Blade Wire , Anti Aging Welded Razor Wire from wholesalers

    Giant Shuttle Fence Razor Blade Wire , Anti Aging Welded Razor Wire

    Ask Lasest Price
    Brand Name : Giant Shuttle
    Model Number : WW-00014
    Certification : ISO9001
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 1000 Rolls/Week
    Delivery Time : According to order quantity
    • Product Details
    • Company Profile

    Giant Shuttle Fence Razor Blade Wire , Anti Aging Welded Razor Wire

    Giant Shuttle Fence Razor Blade Wire , Anti Aging Welded Razor Wire

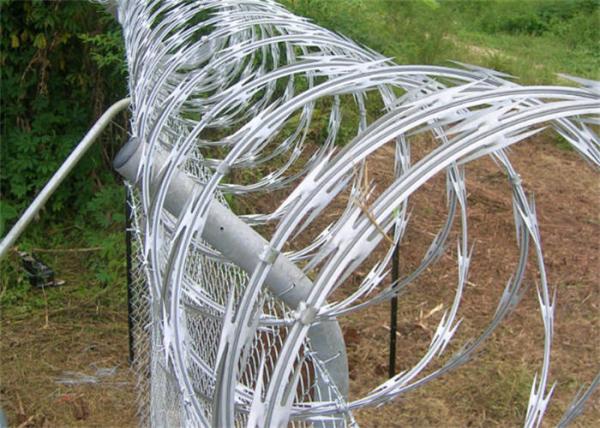

    Razor Barbed Wire is also named concertina razor wire, razor fencing wire, razor blade wire or dannert wire. It is a kind of modern security fencing materials with better protection and fencing strength made of hot-dipped galvanized steel sheets or stainless steel sheets. With sharp blades and strong core wire, razor wire has the features of secure fencing, easy installation, age resistance and other properties.
    Materials: steel wire,low carbon steel wire
    Surface treatment: galvanized, hot-dipped galvanized and electro galvanized
    Type: barbed wire strand
    Razor type: Spiral razor cross-barbed mesh,Single-ring razor barbed mesh

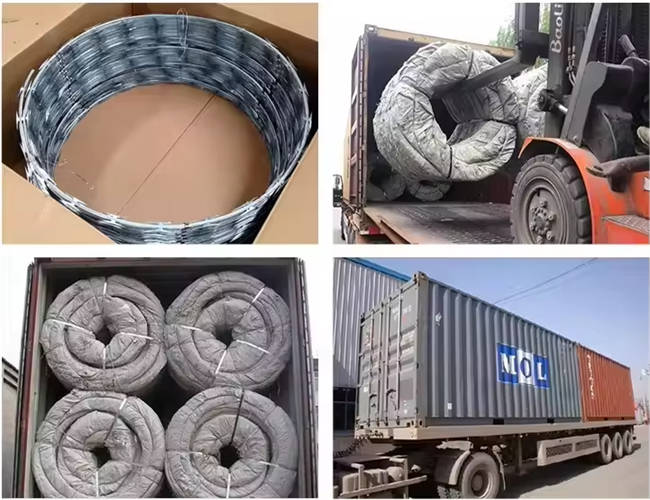

    Packing:

    1. Waterproof paper and woven bag, and then tied by steel strip.
    2. Carton (Mostly for stainless steel concertina wire
    3. Wooden Pallet


    Features of Giant Shuttle Fence Razor Blade Wire , Anti Aging Welded Razor Wire


    Anticorrosion
    Antiaging
    Sunscreen
    Weather ability
    Cost saving
    To some extend play a role in protection and intimidation.


    Applications of Giant Shuttle Fence Razor Blade Wire , Anti Aging Welded Razor Wire


    Airport.
    Military site.
    Prison.
    Factory.
    High class residences.
    Secure hospitals.
    Schools.
    Parks.

    Utilities.
    Refineries.
    Nuclear.
    Energy.


    Specification of Giant Shuttle Fence Razor Blade Wire , Anti Aging Welded Razor Wire

    Reference numberBlade styleThickness
    (mm)
    Wire diameter
    (mm)
    Blade length
    (mm)
    Blade width
    (mm)
    Blade spacing
    (mm)
    BTO-12A drawing of BTO-12 razor wire.0.5 ± 0.052.5 ± 0.112 ± 115 ± 126 ± 1
    BTO-15A drawing of BTO-15 razor wire.0.5 ± 0.052.5 ± 0.115 ± 115 ± 133 ± 1
    BTO-22A drawing of BTO-22 razor wire.0.5 ± 0.052.5 ± 0.122 ± 115 ± 134 ± 1
    BTO-30A drawing of BTO-30 razor wire.0.5 ± 0.052.5 ± 0.130 ± 118 ± 145 ± 1
    CBT-25A drawing of CBT-25 razor wire.0.5 ± 0.052.5 ± 0.125 ± 116 ± 140 ± 1
    CBT-60A drawing of CBT-60 razor wire.0.6 ± 0.052.5 ± 0.160 ± 232 ± 1100 ± 2
    CBT-65A drawing of CBT-65 razor wire.0.6 ± 0.052.5 ± 0.165 ± 221 ± 1100 ± 2
    CBT refers to Concertina Barbed Tape.
    BTO refers to Barbed Tape Obstacle.

    Specifications of commonly used razor wire

    ItemOutside diameter
    (mm)
    Quantity of loopsStandard length per coil
    (m)
    TypeNotes
    RZ-01450337-8CBT-60, 65Single coil
    RZ-025005612-13CBT-60, 65Single coil
    RZ-037005613-14CBT-60, 65Single coil
    RZ-049305614-15CBT-60, 65Single coil
    RZ-05450568-9 (3 clips)BTO-10, 12, 18, 22, 28, 30Cross type
    RZ-06500569-10 (3 clips)BTO-10, 12, 18, 22, 28, 30Cross type
    RZ-076005610-11 (3 clips)BTO-10, 12, 18, 22, 28, 30Cross type
    RZ-08600568-10 (5 clips)BTO-10, 12, 18, 22, 28, 30Cross type
    RZ-097005610-12 (5 clips)BTO-10, 12, 18, 22, 28, 30Cross type
    RZ-108005611-13 (5 clips)BTO-10, 12, 18, 22, 28, 30Cross type
    RZ-119005612-14 (5 clips)BTO-10, 12, 18, 22, 28, 30Cross type
    RZ-129605613-15 (5 clips)BTO-10, 12, 18, 22, 28, 30Cross type
    RZ-139805614-16 (5 clips)BTO-10, 12, 18, 22, 28, 30Cross type







    Quality Giant Shuttle Fence Razor Blade Wire , Anti Aging Welded Razor Wire for sale
