    Electric Galvanized Concertina Razor Wire BTO15 Anti Corrosion For Fence

    Ask Lasest Price
    Brand Name : Giant Shuttle
    Model Number : WW-00014
    Certification : ISO9001
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 1000 Rolls/Week
    Delivery Time : According to order quantity
    • Product Details
    • Company Profile

    Electric Galvanized Concertina Razor Wire BTO15 Anti Corrosion For Fence

    Electric Galvanized Concertina Razor Wire BTO15 Anti Corrosion For Fence

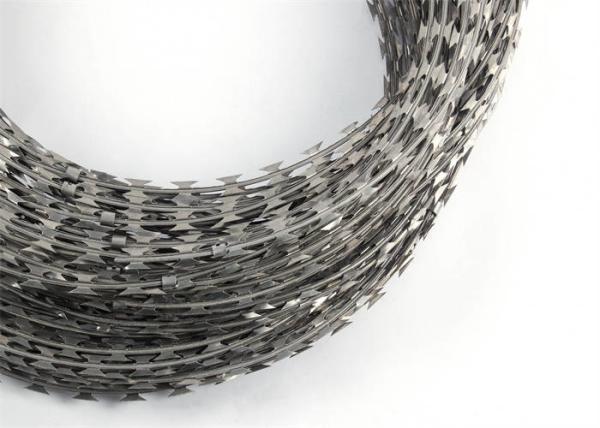

    Razor wire, also known as barbed tape, is a highly effective and widely used security fencing material. It is characterized by its sharp, razor-like edges, which act as a strong deterrent against potential intruders and provide enhanced security for various applications.

    Razor barbed wire can be in coils and in panels. The material of razor wire can be galvanized wire, stainless steel wire; the surface treatment can be hot dipped galvanized or stainless steel or powder coated, all colors can be customized.


    Features of Electric Galvanized Galvanized Concertina Razor Wire BTO15 Razor Wire For Fence


    Anti corrosion
    Antiaging
    Sunscreen
    Weather ability
    Cost saving
    To some extend play a role in protection and intimidation.


    Applications of Electric Galvanized Concertina Razor Wire BTO15 Anti Corrosion For Fence


    Airport.
    Military site.
    Prison.
    Factory.
    High class residences.
    Secure hospitals.
    Schools.
    Parks.


    Specification of Electric Galvanized Concertina Razor Wire BTO15 Anti Corrosion For Fence

    Reference numberBlade styleThickness
    (mm)
    Wire diameter
    (mm)
    Blade length
    (mm)
    Blade width
    (mm)
    Blade spacing
    (mm)
    BTO-12A drawing of BTO-12 razor wire.0.5 ± 0.052.5 ± 0.112 ± 115 ± 126 ± 1
    BTO-15A drawing of BTO-15 razor wire.0.5 ± 0.052.5 ± 0.115 ± 115 ± 133 ± 1
    BTO-22A drawing of BTO-22 razor wire.0.5 ± 0.052.5 ± 0.122 ± 115 ± 134 ± 1
    BTO-30A drawing of BTO-30 razor wire.0.5 ± 0.052.5 ± 0.130 ± 118 ± 145 ± 1
    CBT-25A drawing of CBT-25 razor wire.0.5 ± 0.052.5 ± 0.125 ± 116 ± 140 ± 1
    CBT-60A drawing of CBT-60 razor wire.0.6 ± 0.052.5 ± 0.160 ± 232 ± 1100 ± 2
    CBT-65A drawing of CBT-65 razor wire.0.6 ± 0.052.5 ± 0.165 ± 221 ± 1100 ± 2
    CBT refers to Concertina Barbed Tape.
    BTO refers to Barbed Tape Obstacle.

    Specifications of commonly used razor wire

    ItemOutside diameter
    (mm)
    Quantity of loopsStandard length per coil
    (m)
    TypeNotes
    RZ-01450337-8CBT-60, 65Single coil
    RZ-025005612-13CBT-60, 65Single coil
    RZ-037005613-14CBT-60, 65Single coil
    RZ-049305614-15CBT-60, 65Single coil
    RZ-05450568-9 (3 clips)BTO-10, 12, 18, 22, 28, 30Cross type
    RZ-06500569-10 (3 clips)BTO-10, 12, 18, 22, 28, 30Cross type
    RZ-076005610-11 (3 clips)BTO-10, 12, 18, 22, 28, 30Cross type
    RZ-08600568-10 (5 clips)BTO-10, 12, 18, 22, 28, 30Cross type
    RZ-097005610-12 (5 clips)BTO-10, 12, 18, 22, 28, 30Cross type
    RZ-108005611-13 (5 clips)BTO-10, 12, 18, 22, 28, 30Cross type
    RZ-119005612-14 (5 clips)BTO-10, 12, 18, 22, 28, 30Cross type
    RZ-129605613-15 (5 clips)BTO-10, 12, 18, 22, 28, 30Cross type
    RZ-139805614-16 (5 clips)BTO-10, 12, 18, 22, 28, 30Cross type
